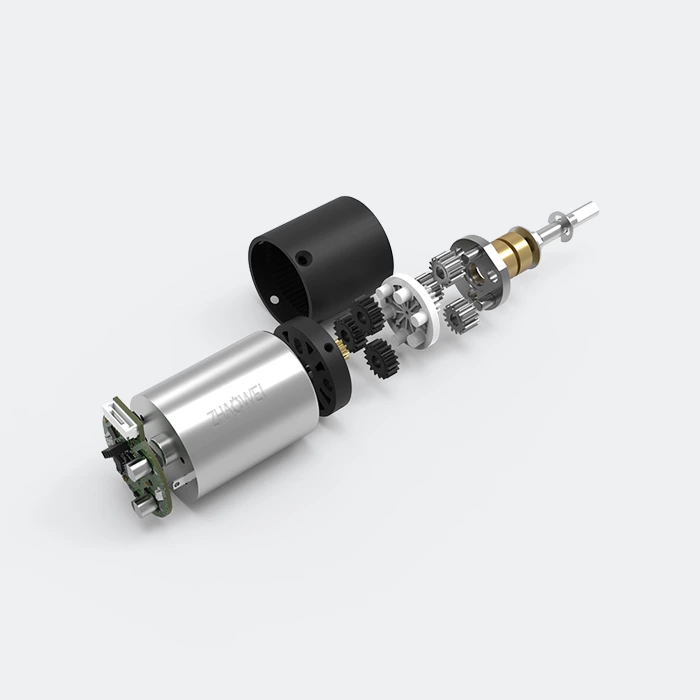

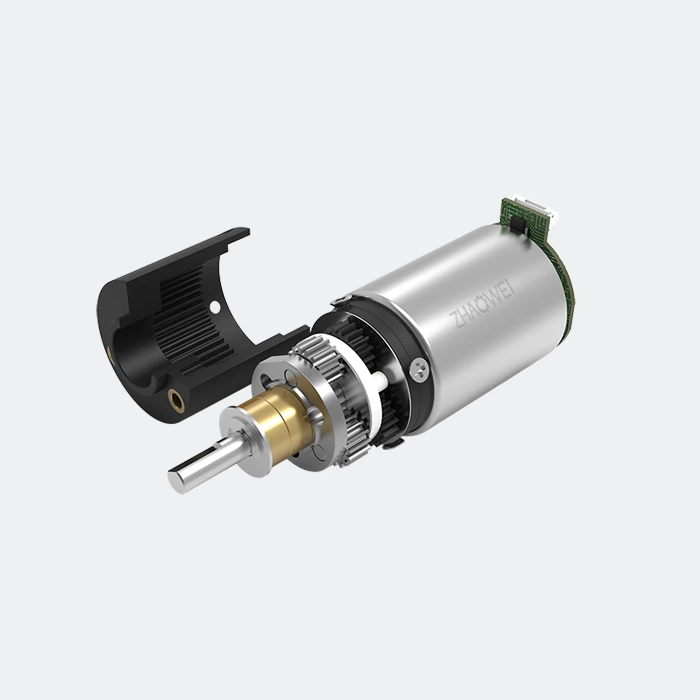

12V Brushed DC Gear Motor(24mm)

Model: PD024024

Gearbox Specifications: Bearing Porous bearing Rolling bearing Axial Endplay ≤0.2mm ≤0.2mm Radial Loading on Output Shaft ≤50N ≤100N Operating Temperature -20℃ ~ +85℃ Parameters

Diameter
24mm
Voltage Range
12V
Reduction Ratio
4-1296
Max. Transmittable Power
20W
Max. Continuous Torque
15,000gf.cm
Max.Torque Range(gf.cm>
15,000-45,000gf.cm
Rated Speed Range
4-1150rpm

Gearbox Specifications:

Bearing Porous bearing Rolling bearing
Axial Endplay ≤0.2mm ≤0.2mm
Radial Loading on Output Shaft ≤50N ≤100N
Operating Temperature -20℃ ~ +85℃

Parameters:

Gearbox Stages 1 2 3 4
Reduction Ratio 4/6 16/24/36 64/96/144/216 256/384/576/864/1296
Max Rated Torque (gf.cm max) 15,000 15,000 15,000 15,000
Max Instant Torque (gf.cm max) 45,000 45,000 45,000 45,000
Gearbox Efficiency (%) 85 73 65 58
Length (mm) 18.5 24.5 31.5 38.65
Gear backlash ≤3° Customizable

Drawing:

PD24mm technical parameters

Motor Specifications:

Motors (Optional) Brushed DC Motor
Voltage (Optional) 3-24V
Input Speed ≤15,000rpm
Current 300mA max

Performance Data:

Model Rated Speed
(rpm)
 Max Speed
(rpm)
Max Rated Torque (gf.cm) Max Instant Torque
(gf.cm)
Gear Ratio  Length
 (L1)
(mm)
Overall Length
(L)
(mm)
PD024024-4 1875 7500 15000 45000 4 18.8 49.6
PD024024-6 1250 5000 15000 45000 6
PD024024-16 469 1875 15000 45000 16 24.7 55.5
PD024024-24 313 1250 15000 45000 24
PD024024-36 208 833 15000 45000 36
PD024024-64 117 469 15000 45000 64 31.7 62.5
PD024024-96 78 313 15000 45000 96
PD024024-144 52 208 15000 45000 144
PD024024-216 35 139 15000 45000 216
PD024024-256 29 117 15000 45000 256 38.7 69.5
PD024024-384 20 78 15000 45000 384
PD024024-576 13 52 15000 45000 576
PD024024-864 9 35 15000 45000 864
PD024024-1296 6 23 15000 45000 1296

* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
