high precision, high transmission efficiency and long life

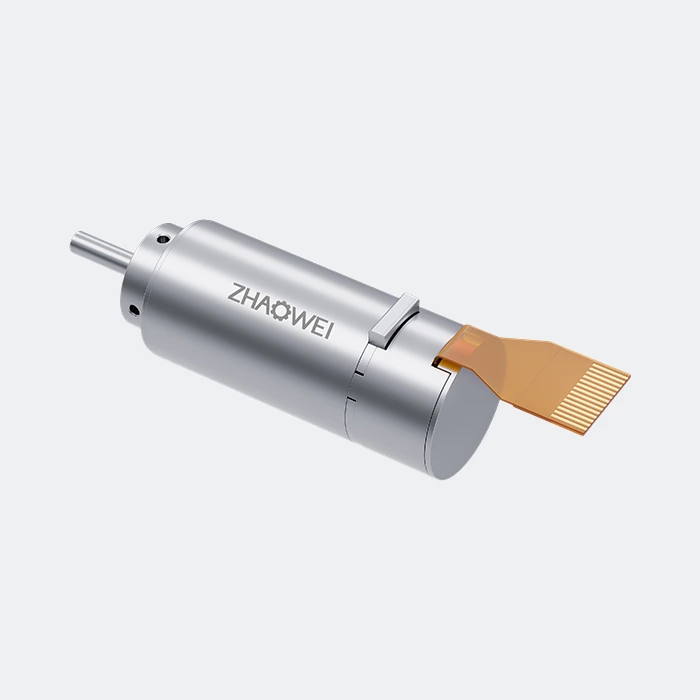

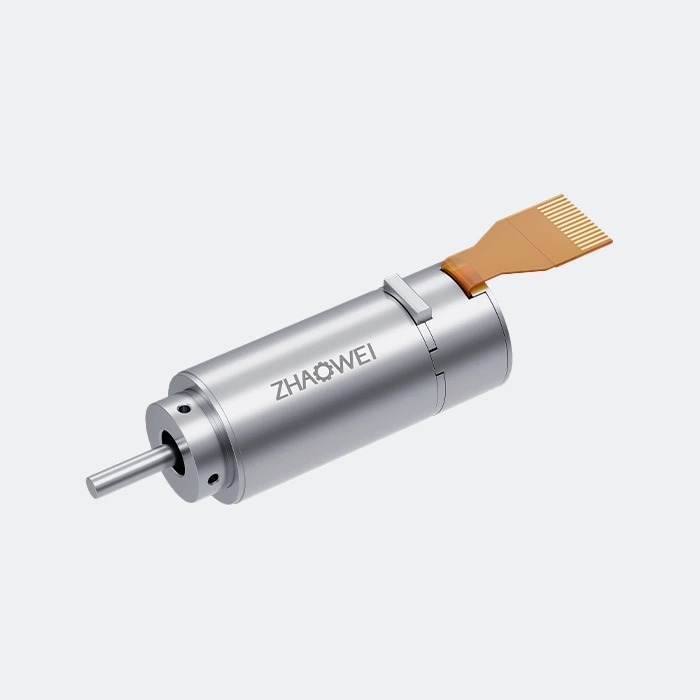

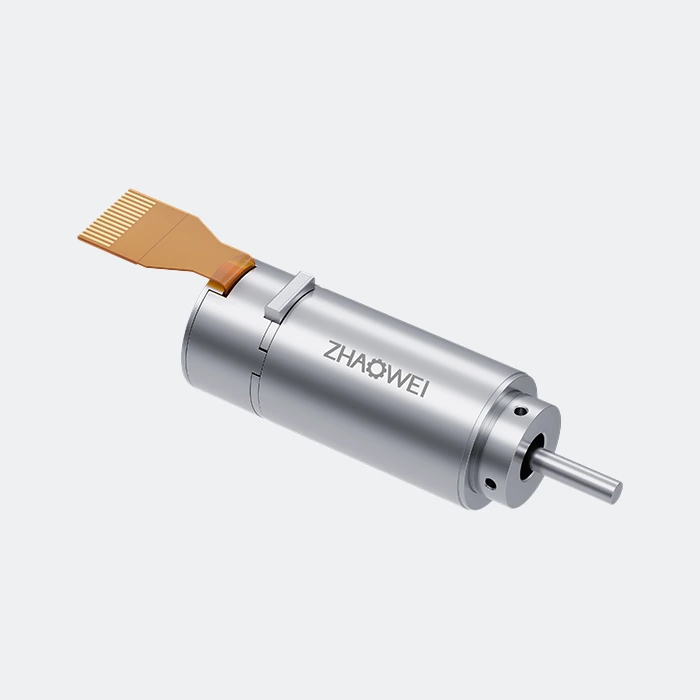

Model：MC1226-01
The MC1226-01 brushless DC slotless motor is ultra cost optimized without compromising on premium performance. The MC1226-01 BLDC mini motor is an ideal choice for downsizing and optimizing handheld applications.
Rated Voltage:
12V
Stall Torque:
8.9mNm
Stall Current:
2A
Constant torque:
3.87mNm/A
Speed Constant:
2383rpm/V
Max. efficiency (%):
67
| Motor Data | |
|---|---|
| Nominal voltage(V) | 12 |
| No load speed(rpm) | 28600 |
| No load current (mA) | 78 |
| Nominal speed (rpm) | 20970 |
| Nominal torque (max. continuous torque) (mNm) | 2.38 |
| Nominal current (max. continuous current) (A) | 0.69 |
| Stall torque(mNm) | 8.9 |
| Stall current(A) | 2.38 |
| Max. efficiency (%) | 67 |
| Characteristics | |
|---|---|
| Terminal resistance phase to phase (Ω) | 5.3 |
| Terminal inductance phase to phase (mH) | 0.042 |
| Torque constant (mNm/A) | 3.87 |
| Speed constant (rpm/V) | 2383 |
| Speed/torque gradient (rpm/mNm) | 3213 |
| Mechanical time constant (ms) | 4.5 |
| Rotor inertia (gcm2) | 0.138 |
| Thermal data | |
|---|---|
| Thermal resistance housing-ambient | 36.6 K/W |
| Thermal resistance winding-housing | 7.5 K/W |
| Thermal time constant winding | 3.2 s |
| Thermal time constant motor | 210 s |
| Ambient temperature | -20~+100°C |
| Max. winding temperature | +125°C |
| Mechanical data (preloaded ball bearings) | |
|---|---|
| Max. speed | 40 000 rpm |
| Axial play at axial load | < 0.15 N 0 mm |
| > 0.15 N max. 0.06 mm | |
| Radial play | preloaded |
| Max. axial load (dynamic) | 2 N |
| Max. force for press fits (static) | 10 N |
| Max. radial load, 2 mm from flange | 5 N |
