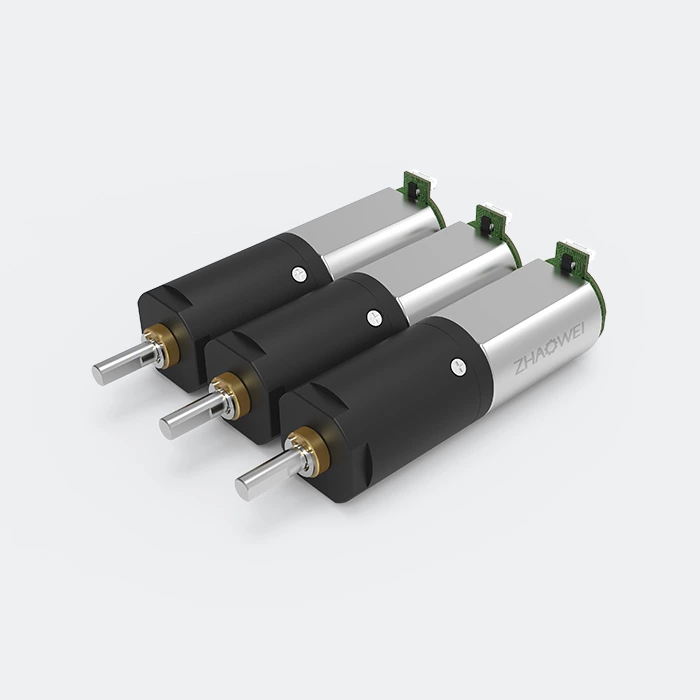

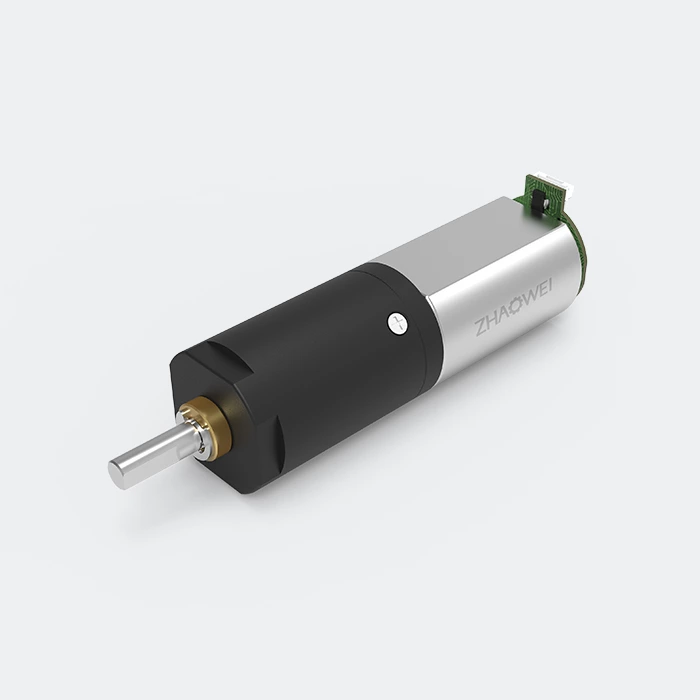

10mm Coreless Gear Motor(PD)

Model: PD010010

Diameter
10mm
Voltage Range
3-12V
Reduction Ratio
3-809
Max. Transmittable Power
0.2W
Max. Continuous Torque
0.13Nm
Rated Speed Range
17-3917rpm
Operating Temperature
-20…+85℃


Application:Industrial automation, special equipment, smart medical products, etc

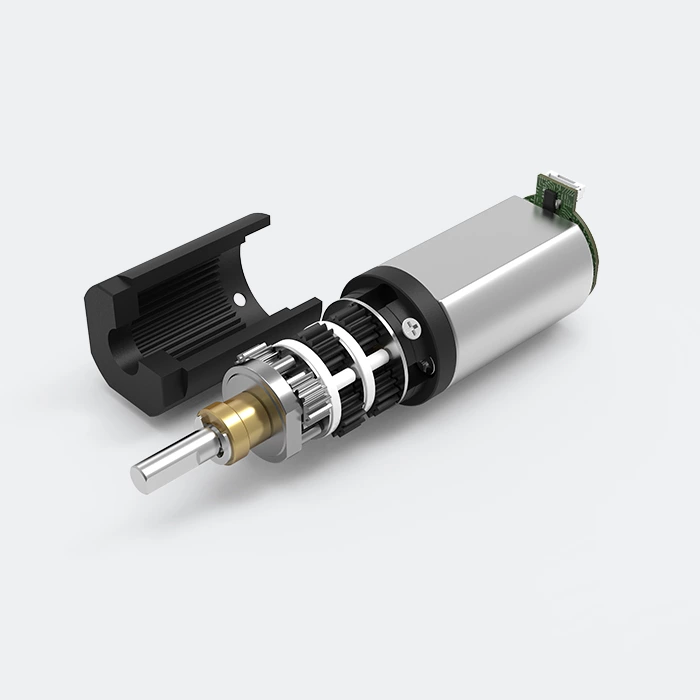

Gearbox Specifications:

Bearing Porous bearing Rolling bearing
Axial Endplay ≤0.3mm ≤0.2mm
Radial Loading on Output Shaft ≤1N ≤7N
Operating Temperature -20℃ ~ +85℃

Parameters:

Gearbox Stages 1 2 3 4
Reduction Ratio 3/5 13/19/28 46/69/102/151 168/249/368/546/809
Max Rated Torque (gf.cm max) 500 500 500 500
Max Instant Torque (gf.cm max) 1000 1000 1000 1000
Gearbox Efficiency (%) 85 73 65 58
Length (mm) 9.7 12.8 15.9 19
Gear backlash ≤3°

Drawing:

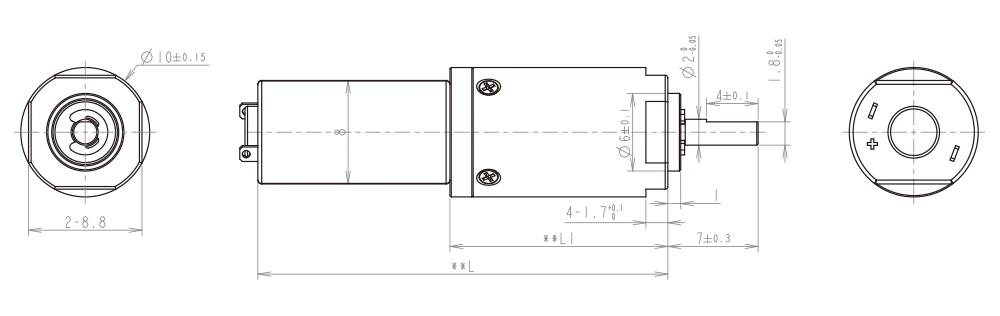

PD10mm technical drawing

Motor Specifications:

Motors (Optional) Coreless Motor
Voltage (Optional) 3-12V
Input Speed ≤30,000rpm
Current 100mA max

Performance Data:

Model Rated Speed
(rpm)
 Max Speed
(rpm)
Max Rated Torque (gf.cm) Max Instant Torque
(gf.cm)
Gear Ratio  Length
 (L1)
(mm)
Overall Length
(L)
(mm)
PD010010-4 1875 7500 1300 4000 4 9.7 24.7
PD010010-6 1250 5000 1300 4000 6
PD010010-13 577 2308 1300 4000 13 12.8 27.8
PD010010-19 395 1579 1300 4000 19
PD010010-28 268 1071 1300 4000 28
PD010010-46 163 652 1300 4000 46 15.9 30.9
PD010010-69 109 435 1300 4000 69
PD010010-102 74 294 1300 4000 102
PD010010-151 50 199 1300 4000 151
PD010010-168 45 179 1300 4000 168 19 34
PD010010-249 30 120 1300 4000 249
PD010010-368 20 82 1300 4000 368
PD010010-546 14 55 1300 4000 546
PD010010-809 9 37 1300 4000 809

* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
