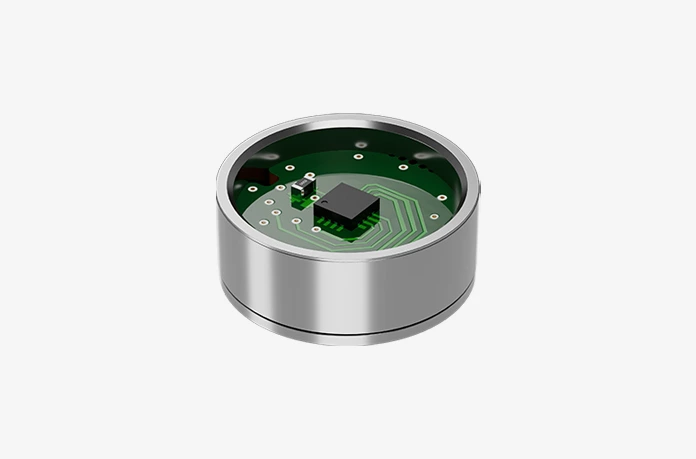

Φ8mm encoder
Model: CB-ST-22
Encoder Technical Parameters The pulse number of each week of rotation N 1~1024 Output signal Square wave Single end ABZ Power supply voltage UDD 3.3-5 V Work current, typical value IDD 10mA Index pul
| Encoder Technical Parameters | ||
|---|---|---|
| The pulse number of each week of rotation | N | 1-1024 |
| Output signal | Square wave | Differential ABZ/UV/ UVW Single end ABZ |
| Power supply voltage | UDD | 3.3~5V |
| Work current, typical value | IDD | 10mA |
| Index pulse width | PO | 180±45° |
| AB channel phase difference | Φ | 90±45° |
| Working temperature range | -40~125℃ | |
| Accuracy | ±1 | |
| Lag angle | 0.088 °m | |
