DC Gear Motors

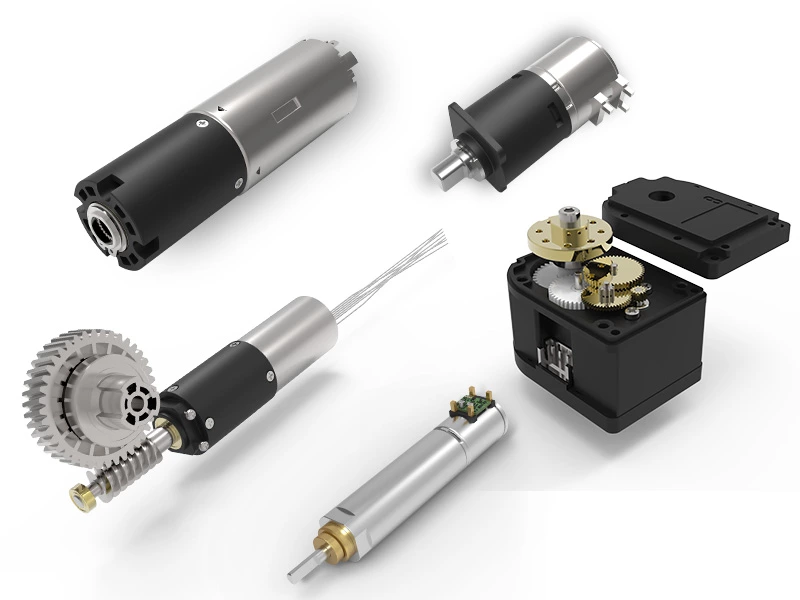

We offer a complete set of micro drive solutions, including precision gear motors, worm drives, precision gearboxes, control boards, encoders, etc. Our dc gear motors have the distinct advantages of high torque, low speed, smooth operation, compact size, and high efficiency, suitable for many industrials.Our dc gear motor configurations include:
- Micro gear motors
- Planetary gear motors
- Worm gear motors
- Custom dc gear motor solutions
The following table is specifications of our standard dc gear motors. If they don’t meet your requirements, Our engineer team will work with you to develop a right customized solution, and we also help you from customized prototypes, initial testing to mass production.
| Diameter | Voltage(V) | Rated Speed Range(rpm) | Max. Torque(gf.cm) | Optional Motor | |
|---|---|---|---|---|---|
| 3.4mm | 1.5-5 | customization | 50gf.cm | stepper motor | Details ▶ |
| 4mm | 1.5-5 | customization | 140gf.cm | stepper motor | Details ▶ |
| 6mm | 3-12 | 4-1563 rpm | 600gf.cm | stepper motor,coreless motor | Details ▶ |
| 8mm | 3-12 | 14-3361 rpm | 750gf.cm | stepper motor,brush motor,coreless motor | Details ▶ |
| 10mm | 3-24 | 17-3917 rpm | 1000gf.cm | stepper motor,brush motor,coreless motor | Details ▶ |
| 12mm | 3-24 | 6-1875rpm | 2000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 16mm | 3-24 | 6-1875 rpm | 5000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 20mm | 3-24 | 6-1875 rpm | 10000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 22mm | 3-24 | 6-1875 rpm | 15000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 24mm | 3-24 | 6-1875 rpm | 20000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 28mm | 3-24 | 5-1658 rpm | 40000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 32mm | 3-24 | 7-469 rpm | 50000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
| 38mm | 3-24 | 4-1525 rpm | 80000gf.cm | bldc motor,stepper motor,brush motor,coreless motor | Details ▶ |
