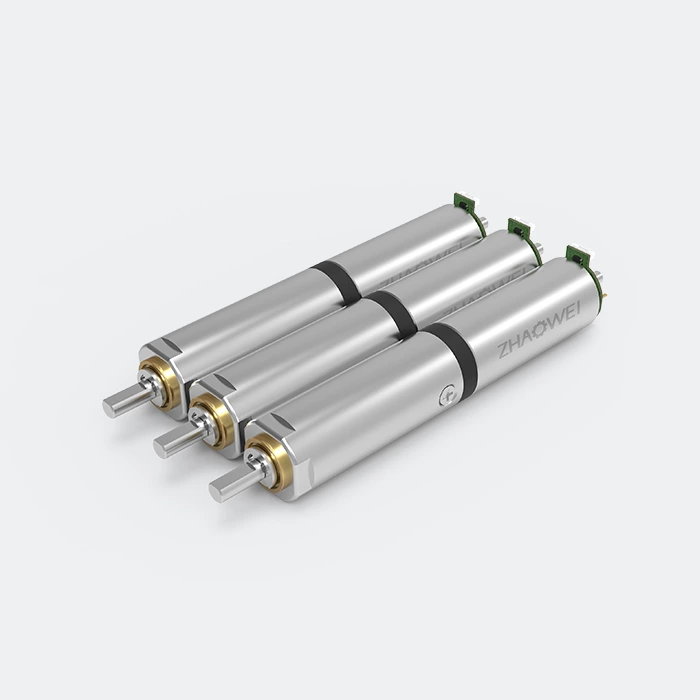

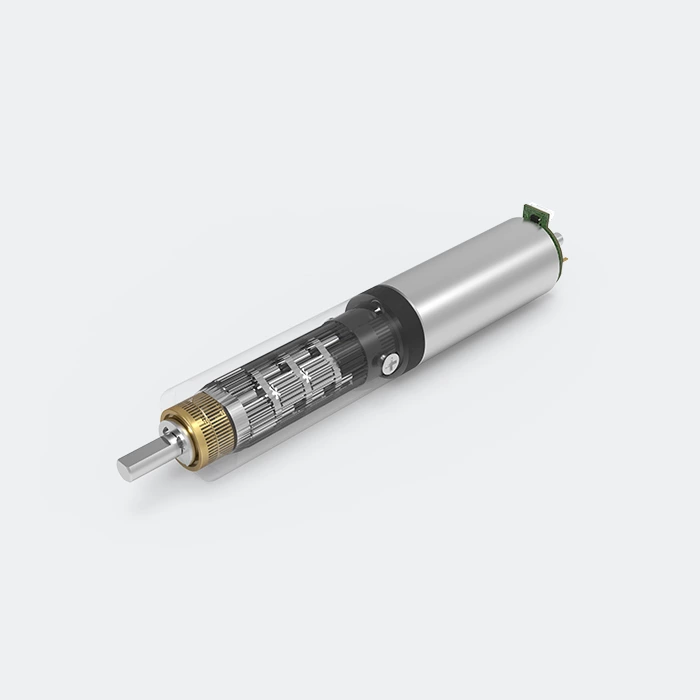

6mm Metal Planetary Gearbox

Model: ZWBMD006006

Diameter
6mm
Voltage Range
3-12V
Reduction Ratio
4-1296
Max. Transmittable Power
0.2W
Max. Continuous Torque
0.025Nm
Rated Speed Range
4-1563rpm
Operating Temperature
-20…+85℃


Application:Industrial automation, special equipment, smart medical products, etc

Gearbox Specifications:

Bearing Porous bearing Rolling bearing
Axial Endplay ≤0.3mm ≤0.3mm
Radial Loading on Output Shaft ≤0.5N ≤5N
Operating Temperature -20℃ ~ +85℃

Parameters:

Gearbox Stages 1 2 3 4
Reduction Ratio 5/6 23/31/41 110/148/198/266 531/711/952/12751708
Max Rated Torque (gf.cm max) 330 330 330 330
Max Instant Torque (gf.cm max) 800 800 800 800
Gearbox Efficiency (%) 87 74 63 56
Length (mm) 9.7 12.1 14.5 16.9
Gear backlash ≤3°

Drawing:

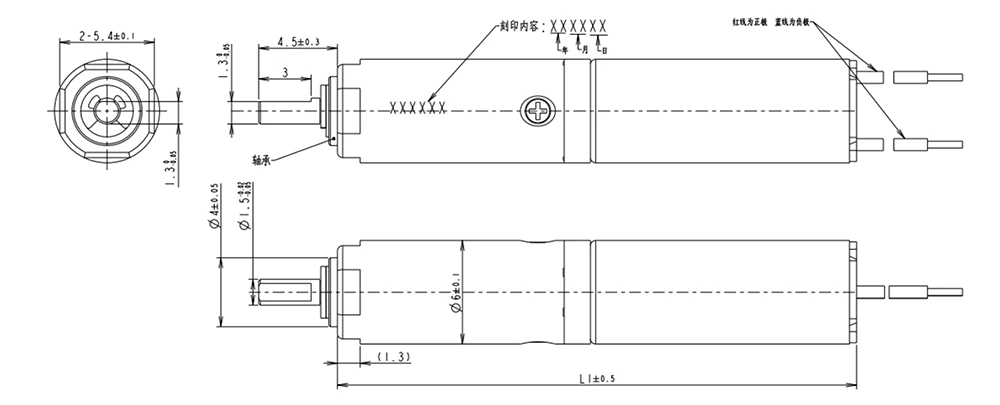

MD6mm technical drawing

Motor Specifications:

Motors (Optional) Coreless motor, Stepper motor
Voltage (Optional) 3-12V
Input Speed ≤30,000rpm
Current 100mA max

Performance Data:

Model Rated Speed
(rpm)
 Max Speed
(rpm)
Max Rated Torque (gf.cm) Max Instant Torque
(gf.cm)
Gear Ratio  Length
(mm)
Overall Length(L1)
(mm)
ZWBMD006006-5 1563 6250 330 800 4.8 9.7 23.7
ZWBMD006006-6 1166 4666 330 800 6.43
ZWBMD006006-23 326 1302 330 800 23.04 12.1 26.1
ZWBMD006006-31 243 972 330 800 30.86
ZWBMD006006-41 181 726 330 800 41.33
ZWBMD006006-110 68 271 330 800 110.6 14.5 28.5
ZWBMD006006-148 51 203 330 800 148.1
ZWBMD006006-198 38 151 330 800 198.4
ZWBMD006006-266 28 113 330 800 265.7
ZWBMD006006-531 14 57 600 1500 530.8 16.9 30.9
ZWBMD006006-711 11 42 600 1500 711.0
ZWBMD006006-952 8 32 600 1500 952.2
ZWBMD006006-1275 6 24 600 1500 1275.2
ZWBMD006006-1708 4 18 600 1500 1707.9

* The above specifications are subject to change without prior notice. They are for reference only and can be customized as required.
